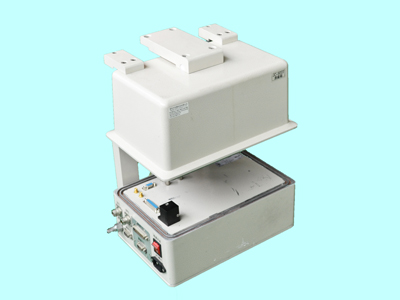

The PD-ONE77 automatic shielding box
Pangda shielding box can provide a method for RF isolation test environment, used to test mobile phone and small RF device, used in research and development institutions, service department, quality certification and manufacturer. This device is inherited in RF test fixture design has many years of experience, high performance-price ratio, it will become the RF production of the necessary standard test device.
Comprehensive wireless communications test solutions, services in DAB / DMB, GSM, CDMA, CDMA2000, WCDMA, TD-SCDMA,3G, WLAN, Bluetooth, mobile phone, PDA, ReFlEX, Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA and other high-end technology field.
Its main features are as follows:
High efficiency RF shielding
- a manual switch or semi automatic pneumatic control
All data and DC signals by the EMI filter
- RS-232C control switch
- according to customer demand to provide a variety of data lines and are connected to the RF joint
- to facilitate the replacement of various jigs
Pneumatic shielding box ( PD-ONE 77)
- shielding rate: >80 dB, from DC to 2.5GHz
- RF connection:2 N (f) outside and SMA ( f ) inside2
Data connection: DB9( P ) outside and DB9( s ) inside,
DB25( P ) outside and DB25( s ) inside
- remote control: RS-232C, DB9( P,3wire )
- the work of space: 280( W ) x 180( D ) x 130( H ) mm
External size: 350( W ) x 260( D ) x 300( H ) mm, ( off)
360W ) x 270( D ) x 310( H ) mm, ( open)
